About PCB Lead Cutting Machine

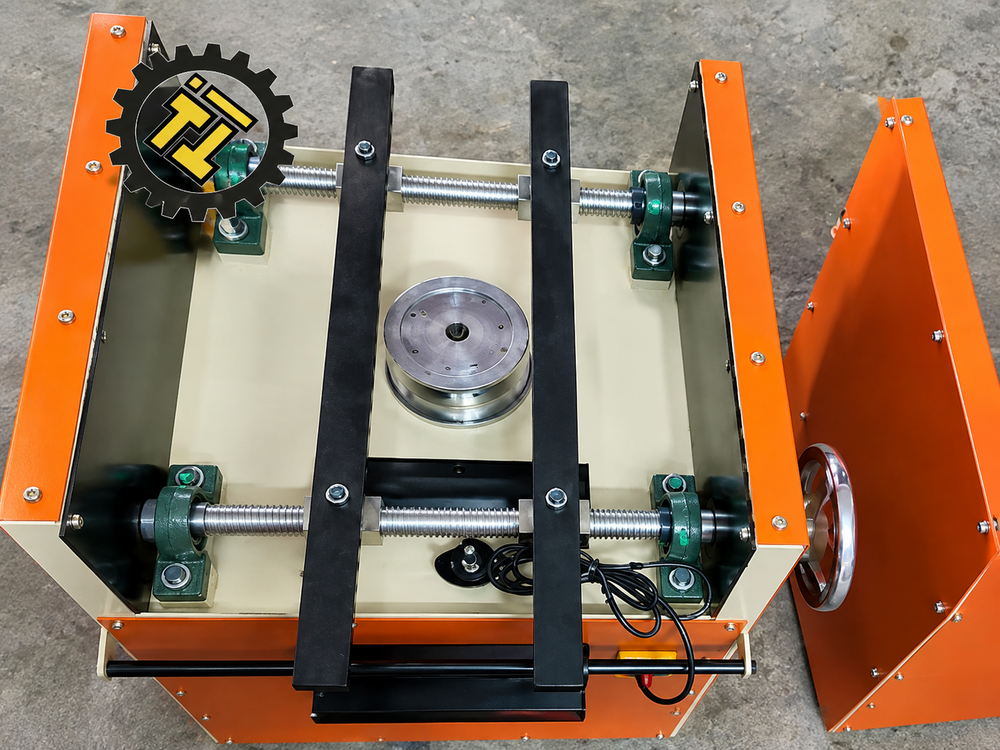

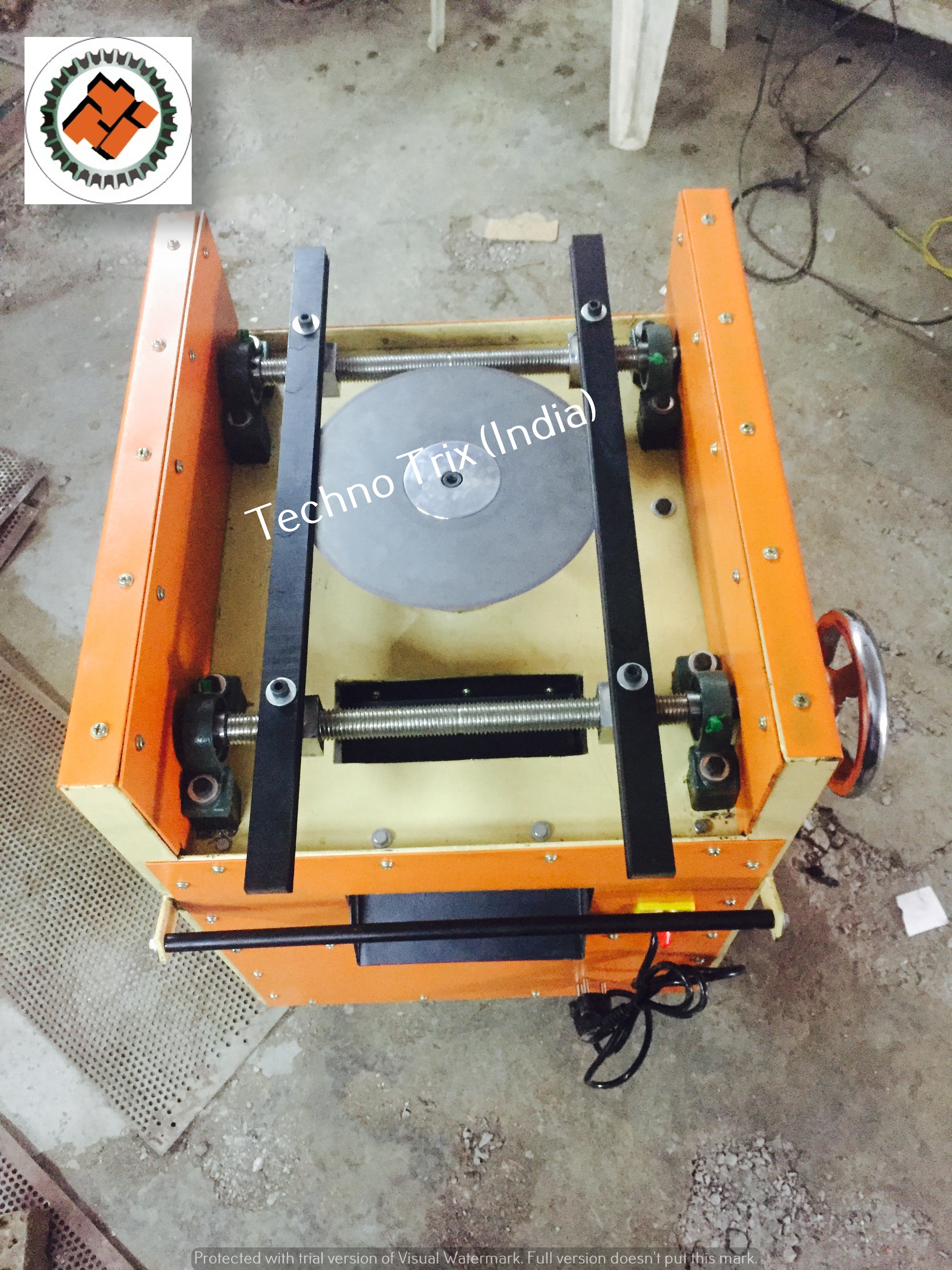

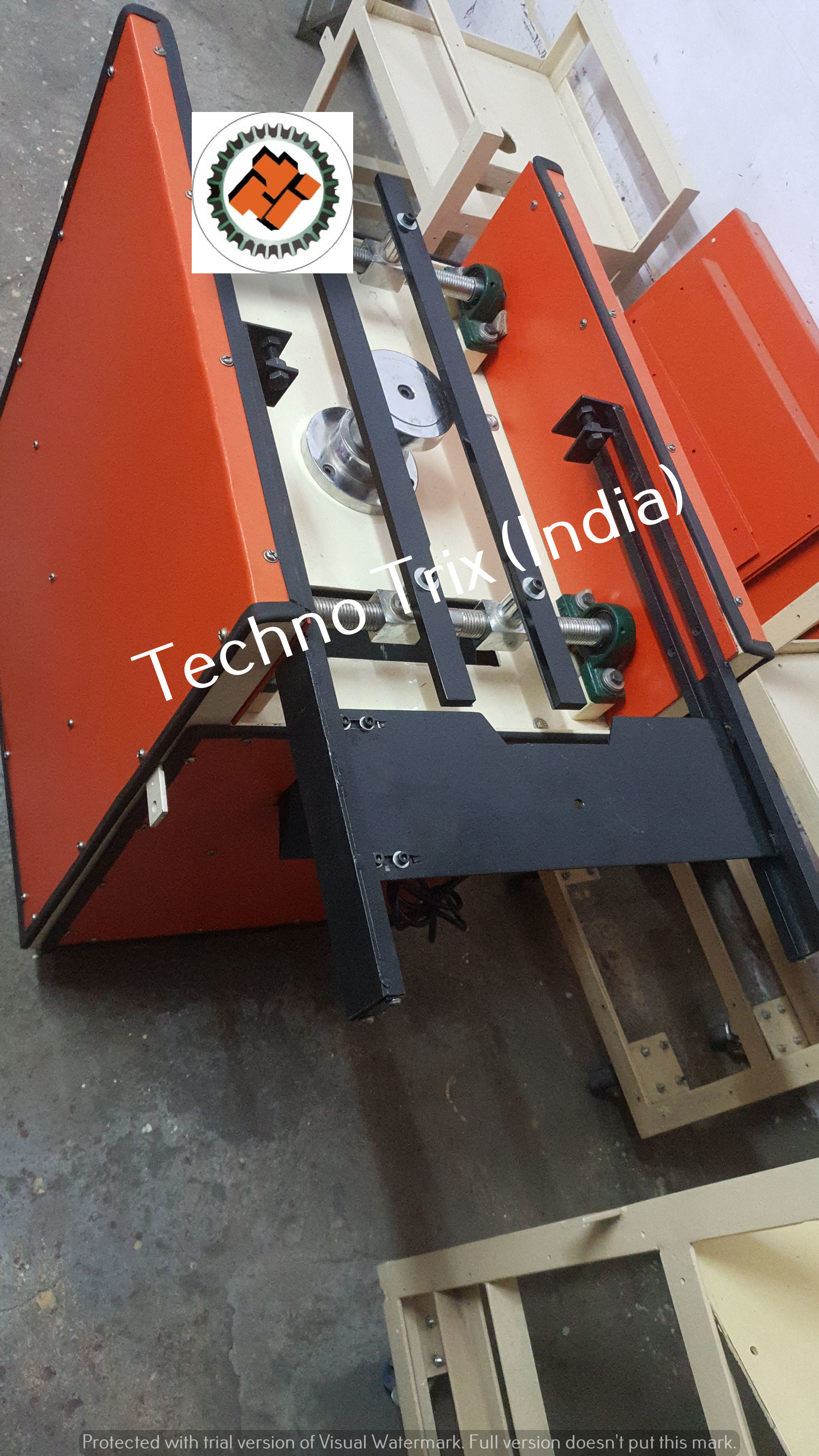

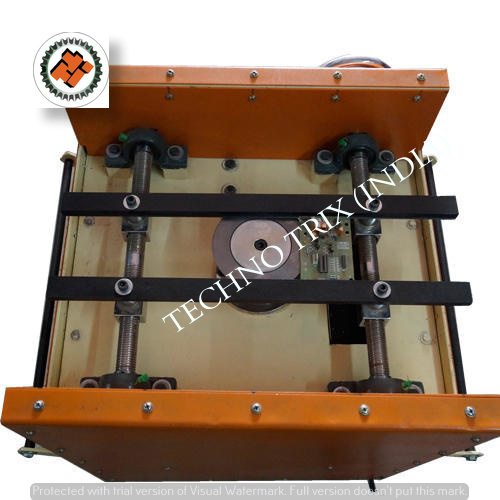

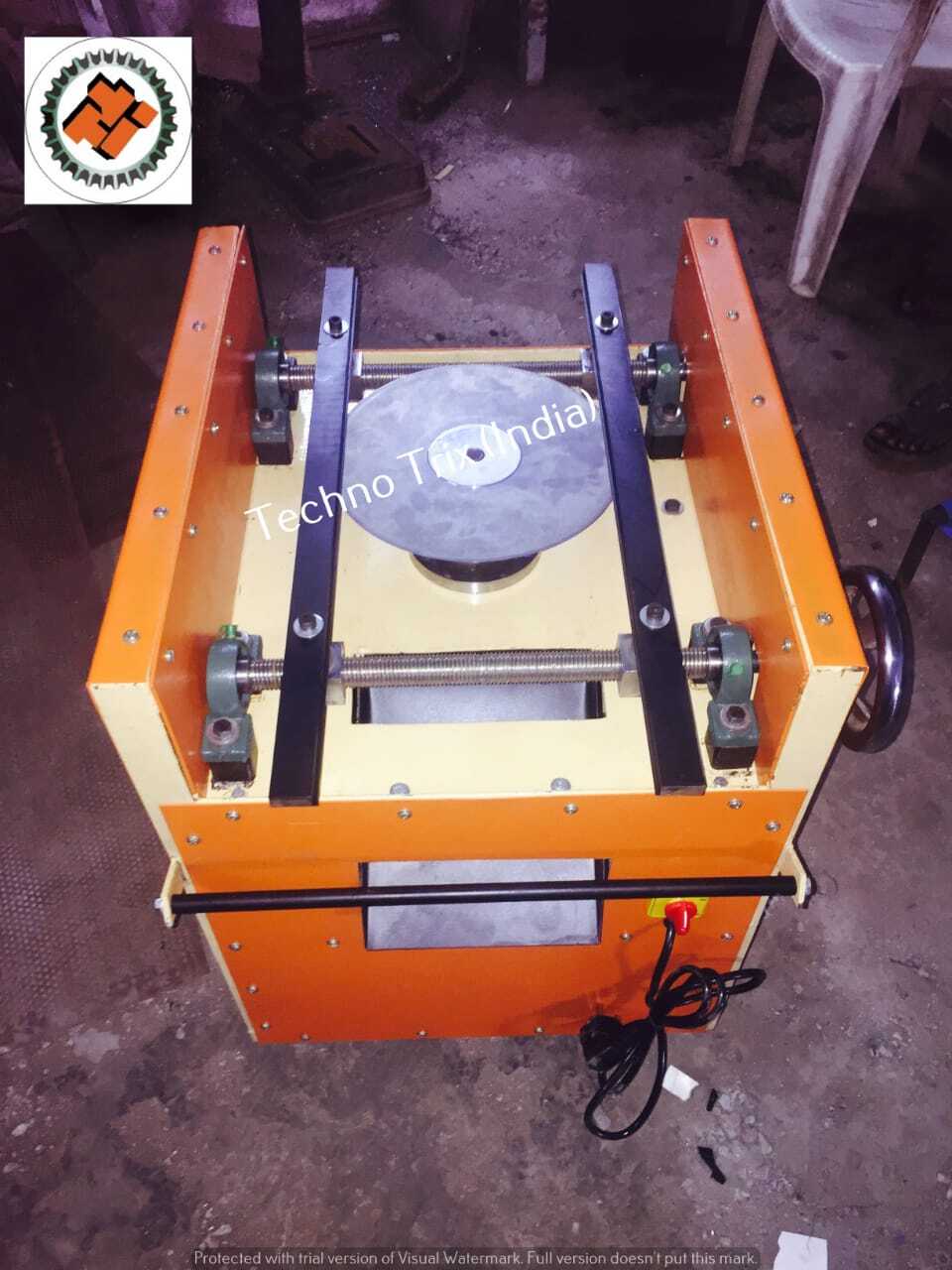

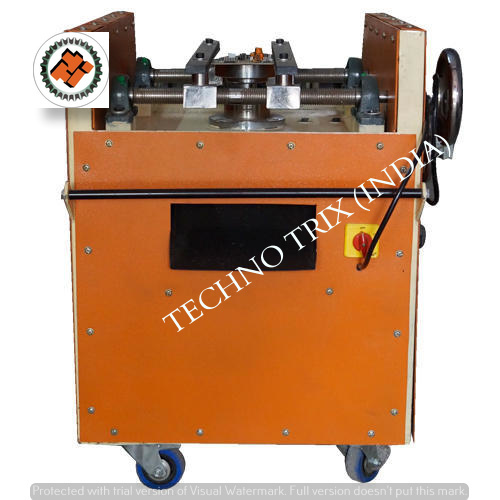

Semi Automatic PCB Lead Cutting Machine

Efficient and Reliable Solution for Precision PCB Lead Trimming

Our Semi Automatic PCB Lead Cutting Machine is a specially designed industrial machine used for trimming excess component leads from Printed Circuit Board Assemblies (PCBA) after the soldering process. Developed to support efficient PCB assembly operations, this machine provides a practical solution for electronic manufacturing industries, PCB production units, and industrial workshops requiring consistent and reliable lead-cutting performance.

After the soldering of electronic components onto a printed circuit board, excess component leads often remain beneath the PCB. These unwanted leads need to be trimmed to achieve a neat finish and support the quality of the assembled circuit board. Our Semi Automatic PCB Lead Cutting Machine is designed to simplify this process by combining a mechanical feeding arrangement with a high-speed tungsten carbide cutting blade.

The machine is manufactured with a focus on durability, ease of operation, and practical industrial use. Its compact construction allows it to be installed in different working environments according to the available space and production requirements. Whether used in a small electronic assembly workshop or a larger manufacturing facility, the machine can provide a convenient approach to PCB lead trimming when configured for the required application.

Semi Automatic Operation for Improved Productivity

The Semi Automatic PCB Lead Cutting Machine is designed to make the lead-trimming process easier and more efficient. Unlike fully manual trimming methods, the machine uses a powered cutting system to remove excess leads, reducing the physical effort required from the operator.

The PCB assembly is manually positioned and fed along the machine track by pushing the handle. As the PCBA moves through the designated cutting area, the fast-rotating tungsten carbide blade trims the unwanted wire leads. This operating arrangement allows the operator to control the feeding movement while the cutting mechanism performs the trimming operation.

The quality of the finished cut depends on factors such as PCB positioning, lead dimensions, blade condition, machine settings, and operating technique. Proper setup and consistent feeding help support uniform results during production.

High-Quality Tungsten Carbide Cutting Blade

One of the important components of this machine is its fast-rotating tungsten carbide cutting blade. The blade is designed for suitable PCB lead-trimming applications and provides a cutting mechanism for removing excess component leads after soldering.

Tungsten carbide is widely used in industrial cutting applications because of its hardness and wear resistance. The performance and service life of the blade depend on its quality, the type of leads being cut, operating conditions, and regular maintenance.

The cutting assembly is designed to support efficient operation while helping manufacturers reduce the time required for manual lead trimming. Operators should ensure that the blade is suitable for the intended PCB and lead specifications before beginning production.

Powerful and Efficient Industrial Motor

The machine is fitted with a 1/2 HP double-bearing, high-efficiency industrial-grade motor, sourced from a reputed manufacturer. The motor supplies the rotational power required for the cutting mechanism and supports continuous machine operation within its designed capacity.

The double-bearing arrangement is intended to support smooth shaft rotation and mechanical stability. Proper lubrication, inspection, and maintenance of the motor and associated components can help maintain reliable performance over time.

The motor selection provides a practical balance between machine size and operating requirements. However, actual cutting capacity and production speed depend on the specific machine configuration, blade specifications, and material being processed.

Smooth and Low-Noise Operation

Our Semi Automatic PCB Lead Cutting Machine is designed to provide smooth functioning and comparatively low-noise operation when properly installed and maintained. A stable mechanical assembly and suitable motor arrangement can help reduce unnecessary vibration and support consistent performance.

Low-noise operation is beneficial in manufacturing environments where multiple machines operate within the same workspace. However, actual sound levels depend on motor condition, blade operation, machine installation, and surrounding conditions.

The machine is intended to support convenient operation while maintaining an efficient workflow for PCB assembly and finishing activities.

Key Features

• Specially designed for trimming excess component leads from PCBA after soldering.

• Fast-rotating tungsten carbide blade for lead-cutting applications.

• Semi-automatic operation with manual PCB feeding.

• PCB movement controlled through a pushing handle.

• Equipped with a 1/2 HP double-bearing industrial-grade motor.

• Designed for smooth and efficient cutting operation.

• Compact construction suitable for different installation environments.

• Manufactured using selected industrial components.

• Suitable for PCB assembly and electronic manufacturing applications.

• Designed to support improved productivity and reduced manual trimming effort.

• Maintenance-friendly mechanical arrangement, subject to machine configuration.

• Available for customer-specific requirements and application considerations.

Applications of Semi Automatic PCB Lead Cutting Machine

The Semi Automatic PCB Lead Cutting Machine is suitable for a range of electronic manufacturing and PCB assembly applications. It can be used in production environments where excess component leads must be trimmed after soldering.

Potential application areas include:

1. PCB Assembly Industries:
Used for trimming unwanted leads from assembled printed circuit boards.

2. Electronic Manufacturing Units:
Supports lead-cutting operations in electronic component production and assembly workflows.

3. Industrial Workshops:
Suitable for workshops requiring a dedicated machine for PCB lead trimming.

4. Production and Maintenance Facilities:
Can be used for compatible PCB processing requirements, subject to machine specifications and operating conditions.

The machine's suitability for a particular application depends on PCB dimensions, component lead sizes, cutting requirements, and machine configuration.

Benefits of Using Our PCB Lead Cutting Machine

Our Semi Automatic PCB Lead Cutting Machine offers a practical approach to PCB lead trimming by combining powered cutting with manual feeding control. It can help reduce the effort involved in repetitive trimming operations and support a more organized production workflow.

The use of a tungsten carbide cutting blade provides a dedicated cutting solution, while the industrial-grade motor supports the mechanical operation. Its compact structure can help users make efficient use of their available workspace.

By incorporating a semi-automatic operating system, the machine provides an option for businesses seeking to improve lead-trimming processes without necessarily adopting a fully automated production system. Appropriate operator training, safety precautions, and regular machine maintenance remain important for achieving dependable results.

Quality Manufacturing and Customer Requirements

We focus on providing industrial machinery designed to meet the practical requirements of our customers. Our Semi Automatic PCB Lead Cutting Machine is developed with attention to construction quality, operating convenience, and application suitability.

We understand that different electronic manufacturing units may have varying PCB sizes, lead dimensions, production volumes, and installation requirements. Therefore, customers can discuss their specific application needs with our team to identify an appropriate machine configuration.

Our objective is to provide reliable equipment that supports efficient PCB processing and helps businesses improve their manufacturing workflow.

Why Choose Our Semi Automatic PCB Lead Cutting Machine?

• Suitable for PCB lead trimming after soldering.

• Semi-automatic feeding and cutting operation.

• Industrial-grade motor for mechanical cutting performance.

• Tungsten carbide blade-based cutting system.

• Compact design for flexible installation.

• Designed for industrial electronic manufacturing applications.

• Practical solution for reducing manual lead-trimming effort.

• Customer-focused approach to machine specifications and requirements.

Conclusion

The Semi Automatic PCB Lead Cutting Machine is a practical industrial solution for trimming excess component leads from PCBA after the soldering process. With its tungsten carbide cutting blade, 1/2 HP double-bearing motor, manual feeding handle, and compact construction, the machine is designed to support efficient and convenient PCB lead-cutting operations.

Its combination of semi-automatic functionality and industrial-grade components makes it suitable for businesses looking to improve their PCB assembly workflow. Proper machine installation, compatible PCB selection, regular maintenance, and trained operation are essential for achieving consistent performance.

Contact us today to learn more about our Semi Automatic PCB Lead Cutting Machine, technical specifications, available configurations, and customer-specific requirements.

Specifications:
